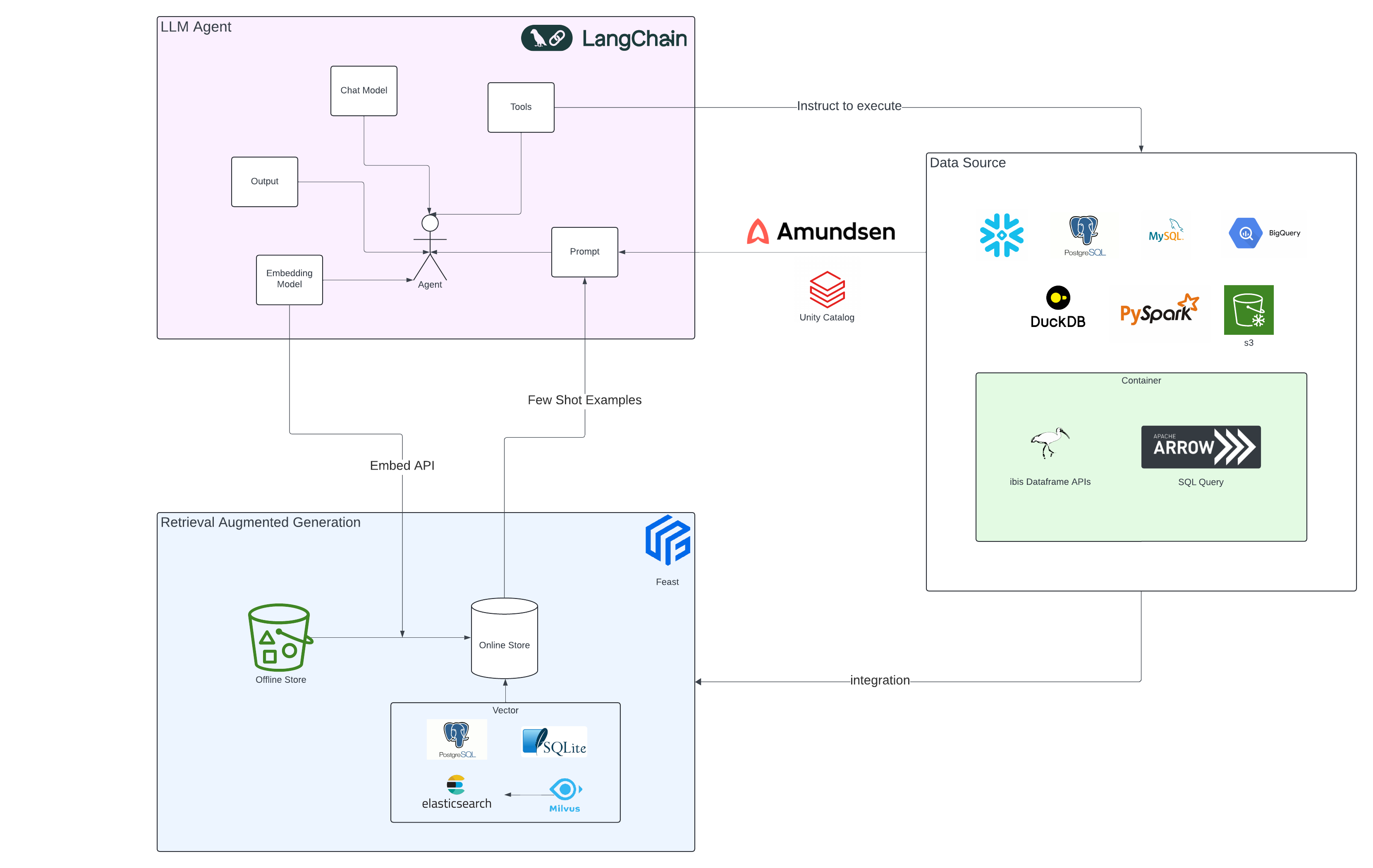

Architecture

Overview

Ryoma is organized into three distinct packages with clear separation of concerns:

ryoma/
├── packages/
│   ├── ryoma_data/      # Data layer: Connectors & profiling
│   ├── ryoma_ai/        # AI layer: LLM agents & analysis
│   └── ryoma_lab/       # UI layer: Interactive interfaces

Package Architecture

1. ryoma_data (Data Layer)

Core Components:

ryoma_data/
├── base.py              # Abstract DataSource interface
├── sql.py               # Unified SQL datasource
├── metadata.py          # Catalog, Schema, Table, Column models
├── profiler.py          # Statistical profiling
└── factory.py           # Datasource factory

Capabilities:

• Database connections and query execution

• Schema introspection and catalog management

• Statistical profiling (row counts, null %, distinct ratios, etc.)

• Data quality scoring

• LSH-based column similarity

• Semantic type inference (rule-based)

2. ryoma_ai (AI Layer)

Core Components:

ryoma_ai/
├── agent/               # AI agents
│   ├── sql.py          # SQL generation agents
│   ├── workflow.py     # Base workflow agent
│   └── internals/      # Specialized agents
│       ├── enhanced_sql_agent.py
│       ├── reforce_sql_agent.py
│       ├── query_planner.py
│       ├── schema_linking_agent.py
│       ├── sql_error_handler.py
│       ├── sql_safety_validator.py
│       └── metadata_manager.py
├── profiling/          # LLM-enhanced profiling
│   └── llm_enhancer.py
├── tool/               # Agent tools
│   ├── sql_tool.py
│   ├── pandas_tool.py
│   └── preprocess_tools.py
├── llm/                # LLM provider abstractions
│   └── provider.py
└── utils/              # Utilities
    └── datasource_utils.py

Capabilities:

• LLM-based metadata enhancement

• SQL generation from natural language

• Multi-step query planning

• Schema linking and relationship analysis

• SQL error handling and recovery

• Query safety validation

• Agent orchestration

3. ryoma_lab (UI Layer)

Interactive user interfaces built with Reflex.

Design Patterns

Unified Datasource Pattern

from ryoma_data import DataSource

# Single class for all SQL databases
datasource = DataSource(
    "postgres",
    host="localhost",
    database="mydb"
)

Separation of Profiling

from ryoma_data import DataSource, DatabaseProfiler

# Statistical profiling (data layer)
datasource = DataSource("postgres", connection_string="...")
profiler = DatabaseProfiler(sample_size=10000)
profile = profiler.profile_table(datasource, "customers")

# LLM enhancement (AI layer)
from ryoma_ai.profiling import LLMProfileEnhancer
enhancer = LLMProfileEnhancer(model=llm_model)
enhanced = enhancer.generate_field_description(profile, "customers")

Type Guards

from ryoma_ai.utils import is_sql_datasource, ensure_sql_datasource

# Type guard for static type checking
if is_sql_datasource(datasource):
    result = datasource.query(sql)

# Runtime validation
sql_ds = ensure_sql_datasource(datasource)
result = sql_ds.query(sql)

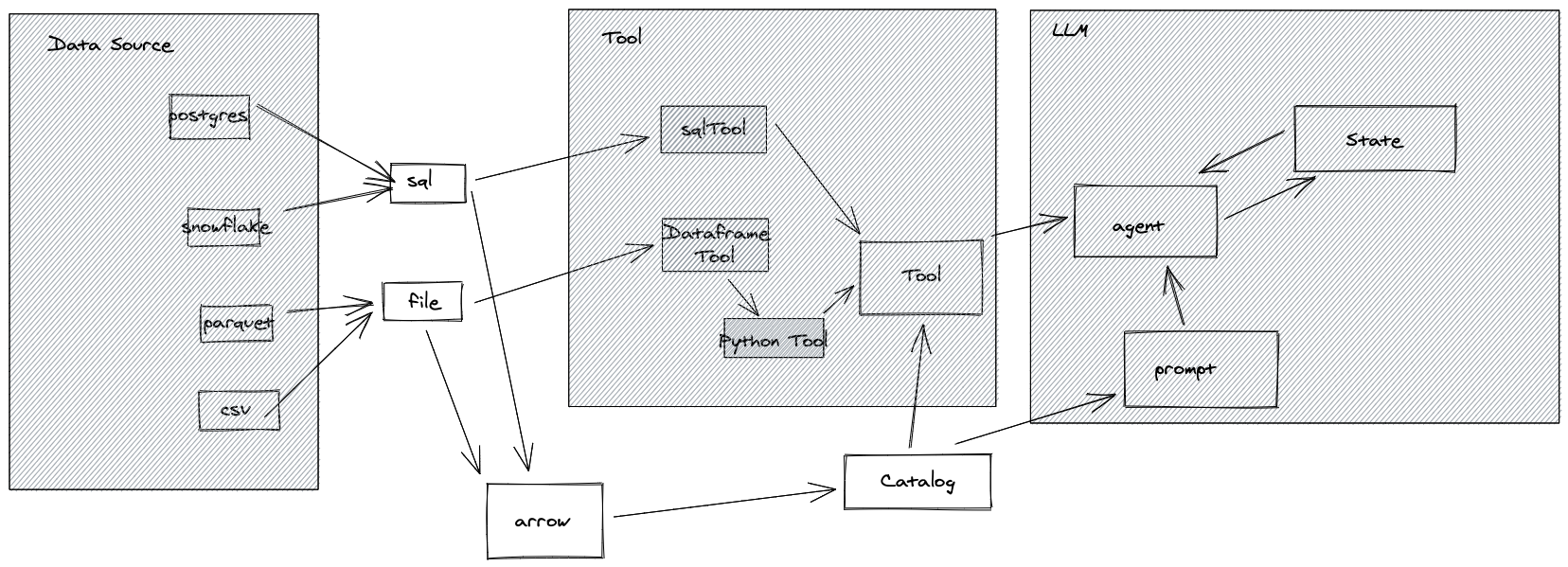

Data Flow

Basic Query Flow

User Question
     ↓
[ryoma_ai Agent]
     ↓
Schema Analysis (ryoma_ai)
     ↓
SQL Generation (ryoma_ai)
     ↓
Safety Validation (ryoma_ai)
     ↓
Query Execution (ryoma_data)
     ↓
Result Processing (ryoma_ai)
     ↓
User Response

Enhanced Profiling Flow

Database
     ↓
[ryoma_data] Statistical Profiling
     ├─ Row counts
     ├─ NULL percentages
     ├─ Distinct ratios
     ├─ Top-k values
     └─ Basic semantic types
     ↓
[ryoma_ai] LLM Enhancement
     ├─ Natural language descriptions
     ├─ Business purpose analysis
     ├─ SQL generation hints
     └─ Join candidate scoring
     ↓
Enhanced Metadata

Extension Points

Adding New Datasources

1. Use the unified DataSource class:

from ryoma_data import DataSource

# New database automatically supported through Ibis
datasource = DataSource(
    "clickhouse",
    host="localhost",
    port=9000
)

2. Register in factory if needed:

from ryoma_data.factory import DataSourceFactory

datasource = DataSourceFactory.create(
    "new_backend",
    **connection_params
)

Adding New AI Features

Create new modules in ryoma_ai that use the DataSource interface:

from ryoma_data import DataSource

class MyAIFeature:
    def __init__(self, datasource: DataSource, model):
        self.datasource = datasource
        self.model = model

    def analyze(self):
        catalog = self.datasource.get_catalog()
        # Use LLM to analyze catalog
        pass

Performance Considerations

Lazy Loading

• Datasources lazy-load database drivers

• Only import what you need

Caching

• LLM responses cached by default

• Statistical profiles can be cached

• Catalog information can be cached

Batch Processing

• Batch profiling modes supported

• Parallel processing for large databases

• Configurable worker pools

Security

SQL Safety (AI Layer)

• Query validation before execution

• Configurable safety rules

• Result size limits

Connection Security (Data Layer)

• Secure credential handling

• Connection pooling

• Timeout enforcement

Related Documentation

• Store Architecture - Storage and state management

• Enhanced SQL Agent - AI agent architecture

• Database Profiling - Profiling system details

References

• Paper: “Automatic Metadata Extraction for Text-to-SQL”

• Paper: “ReFoRCE: A Text-to-SQL Agent with Self-Refinement”

• LangChain: Agent framework

• Ibis: Database abstraction layer
